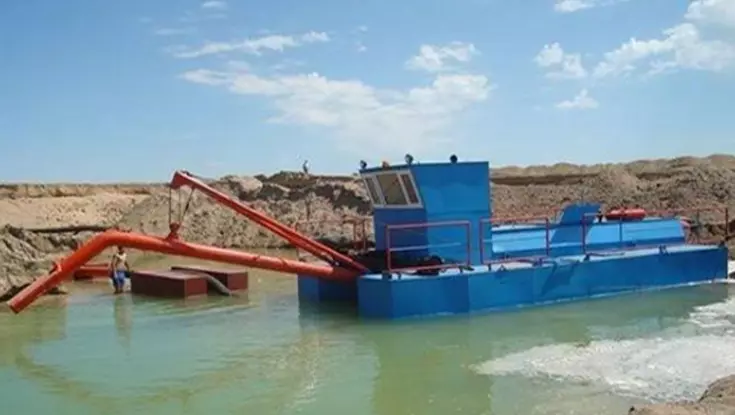

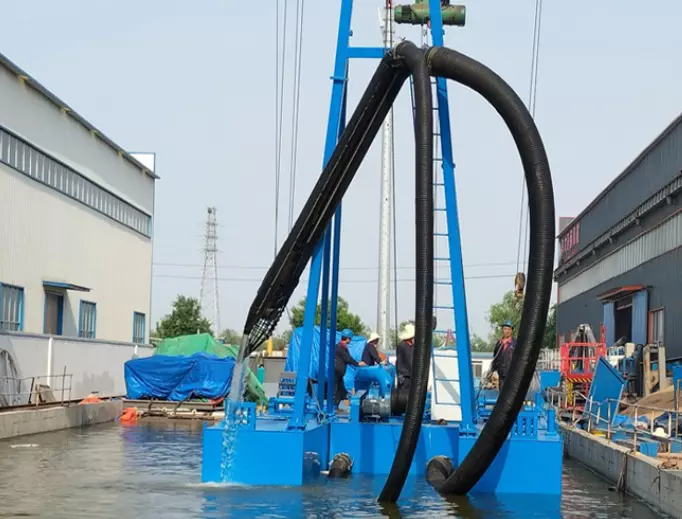

More About Jet Suction Sand Dredger
The Jet Suction Sand Dredger is a highly efficient sand extraction device that operates by using high-pressure water jets to loosen the sand layer, creating a mixture of sand and water. This mixture is then pumped up by a powerful sand pump and transported via pipeline to the designated location. The entire process is streamlined and completed in one go. It is best suited for soft, collapsible sand layers, but is less effective in hard, compacted environments containing large amounts of soil, where high-pressure water jets may have minimal impact. Compared to the high investment required for cutter suction dredgers, jet suction dredgers offer a cost-effective solution for smaller scale production needs.
Applications: This equipment is widely used for dredging in medium to small channels, harbors, and lakes. It is also valuable in water management projects, such as excavation in reservoirs and canals, land reclamation, farmland transformation, and dike construction.
Key Features:
- High throughput: The high-pressure water jet effectively erodes soil and sand, blending them with water to form a slurry, which is then pumped and transported to the desired site.
- Integrated operation: The process from sand loosening to transportation is completed in one continuous operation, saving time and labor.
- Optimal for soft sand environments: This dredger excels in soft sand and collapse-prone areas, making it particularly effective in port and lake dredging operations.
Product Specifications:
- Name: Jet Suction Sand Dredger
- Model: 200
- Dimensions: 12m × 5.2m × 8.5m
- Dredging Depth: 15m
- Water Flow Rate: 1000m³/h
- Standard Discharge Distance: 800m
- Main Engine Power: 294 kW
